Slim Cart

Slim Cart

Slim Cart. You can handle easily in any narrow spaces.
With its six wheels, Slim Cart can turn in a small radius. And the double coating paint makes the carts strong and look beautiful. When you stack the carts by lifting the bottom plates, you can store them in very limited spaces. For our easy carrying nesting type products, you can also choose products with the brakes option.
[The Middle shelves are optional products.]

6 Wheel Slim Cart

Stacking type

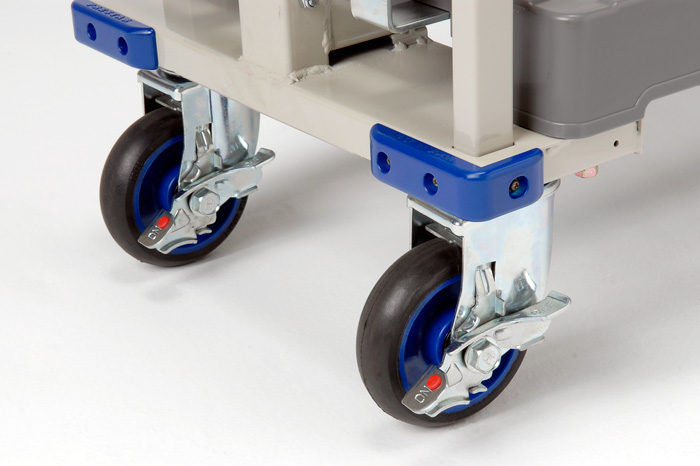

The model for staking storage. There are products with brake and without brake.

ST

STB

Stacking type (ST、STB Photo1)

Net weight ST: 28kg, with brake
STB: 30kg, without brake
Loaded weight ST: 500kg
STB: 500kg
External dimensions W1277×D445×H1500 (mm)
Internal dimensions W1141×D445×H1285 (mm)
Middle shelf weight 4.8kg
Maximum loaded weight per shelf 100kg

Stacking type (ST、STB Photo2) Stacking type (ST、STB Photo3) Stacking type (ST、STB Photo4)


4 nesting type

SNL

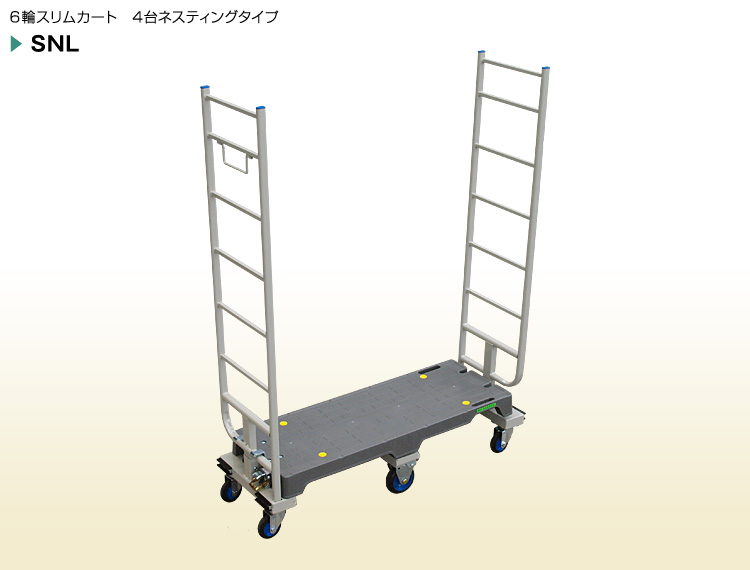

4 Nesting Type(SNL Photo1)

Net weight 34kg
Loaded weight 300kg
External dimensions W1270×D420×H1650 (mm)
Internal dimensions W1141×D420×H1371 (mm)
Middle shelf weight 4.8kg
Maximum loaded weight per shelf 100kg

Current standard model of Uesugi slim. The balance structure, which maintains the stability by up and down motion of central fixed wheels.

4 Nesting Type(SNL Photo2) 4 Nesting Type(SNL Photo3) 4 Nesting Type(SNL Photo4) 4 Nesting Type(SNL Photo5)


SNC

4 Nesting Type(SNC Photo1)

Net weight 34kg
Loaded weight 300kg
External dimensions W1280×D420×H1600 (mm)
Internal dimensions W1126×D420×H1346 (mm)
Middle shelf weight 4.7kg
Maximum loaded weight per shelf 100kg

The balance structure, which maintains the stability by up and down motion of side swivel casters.

4 Nesting Type(SNC Photo2) 4 Nesting Type(SNC Photo3) 4 Nesting Type(SNC Photo4) 4 Nesting Type(SNC Photo5)


4 Wheel Slim Cart

4SN920

4SN970

4SN1020

4 Wheel Slim Cart

Net weight 4SN920: 28kg
4SN970: 28.5kg
4SN1020: 29kg
Loaded weight 4SN920: 300kg
4SN970: 300kg
4SN1020: 300kg
External dimensions 4SN920: W920×D480×H1650 (mm)
4SN970: W970×D480×H1650 (mm)
4SN1020: W1020×D480×H1650 (mm)
Internal dimensions 4SN920: W816×D475×H1364 (mm)
4SN970: W866×D475×H1364 (mm)
4SN1020: W916×D475×H1364 (mm)
Middle shelf weight 4SN920: 3.6kg
4SN970: 3.7kg
4SN1020: 3.8kg
Maximum loaded weight per shelf 4SN920: 100kg
4SN970: 100kg
4SN1020: 100kg

4 Wheel Slim Cart Photo1 4 Wheel Slim Cart Photo2 4 Wheel Slim Cart Photo3 4 Wheel Slim Cart Photo4 4 Wheel Slim Cart Photo5
4 Wheel Slim Cart Photo6

*Please note that product specifications are subject to change without notice.
